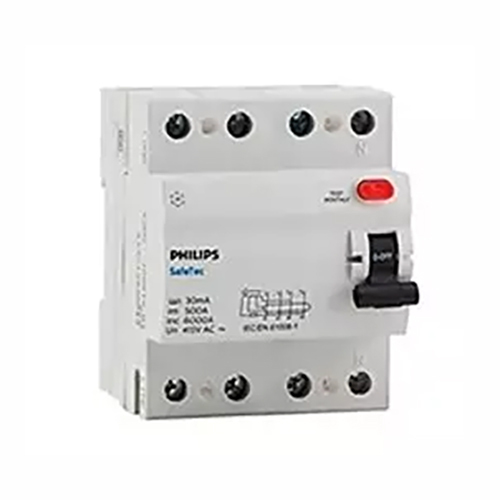

Rccb Four Pole 63A,100Ma Residual Current Circuit Breaker

Get a Price/Quote

Rccb Four Pole 63A,100Ma Residual Current Circuit Breaker Specification

Mechanical Life
Above 4000 Operations

Phase
Three Phase + Neutral

Rated Short Circuit Making Current
10kA

Breaking Capacity
10kA

Rated Short Circuit Breaking Current
10kA

Product Type
Residual Current Circuit Breaker (RCCB)

Installation Options
DIN Rail Mounting

Function
Residual Current Protection against Earth Fault/Leakage

Poles Number
Four Pole

Rated Voltage
240/415V AC

Rated Current
63A

Rated Frequency
50/60 Hz

Curves
Standard Operating Curve (IEC/EN 61008-1)

Temperature Protection
-5C to +40C

Weight
Approx. 400-500g

Color
White with Black Switch

Trip Type
Electromechanical

Indicator
ON/OFF LED Indicator

Operating Temperature
-5C to +40C

Tightening Torque for Terminal
2.0 Nm max

Insulation Voltage (Ui)
600V AC

Standards
IEC/EN 61008, IS 12640-1

Terminal Capacity
1-25 mm2

Response Time
< 0.1 second

Residual Current Type
AC Type (sensitive to Alternating Current)

Sensitivity (Rated Residual Operating Current, In)
100mA

Mounting Position
Vertical

Housing Material
High Strength Flame Retardant Plastic

Degree of Protection
IP20 (Terminals), IP40 (Device Enclosure)

About Rccb Four Pole 63A,100Ma Residual Current Circuit Breaker

Capitalise on the laureate performance of the RCCB Four Pole 63A, 100mA Residual Current Circuit Breaker-featured for its towering reliability and sublime safety. Designed for ephemeral electrical risks, it responds in under 0.1 seconds to alternating current leakage, protecting both life and property. Fabricated from high strength flame retardant plastic and adhering to IEC/EN 61008 and IS 12640-1 standards, this device boasts an insulation voltage of 600V AC and a four-pole configuration. Its ON/OFF LED indicator, robust mechanical life, and versatile mounting further amplify its outstanding credentials for demanding Indian markets.

Versatile Usage and Application Methods

The RCCB Four Pole 63A, 100mA is highly effective for safeguarding residential, commercial, and industrial electrical installations against earth fault and leakage currents. Its vertical DIN rail mounting enables convenient, secure application in distribution panels. Ideal for three-phase plus neutral circuits, it is extensively used for wiring protection in homes, offices, factories, and high-rise buildings, delivering consistent safety in environments demanding stringent current control and rapid isolation.

Payment Terms and Export/Local Market Coverage

Packing & Dispatch processes ensure product integrity from our facilities to your site or FOB port. We serve the main domestic market across India and support export orders. Payment terms are streamlined for prompt Order Completion, accommodating cash, bank transfer, or agreed options. Our RCCBs are sought by suppliers, traders, and wholesalers, making them ideal for expansive projects needing timely delivery and reliable operation.

FAQ's of Rccb Four Pole 63A,100Ma Residual Current Circuit Breaker:

Q: How does the RCCB Four Pole 63A, 100mA protect against electrical hazards?

A: This RCCB detects residual leakage currents in three-phase plus neutral systems and disconnects power within 0.1 seconds, minimizing risks of electric shock and fire by interrupting earth faults and leakage currents.

Q: What types of electrical installations is this RCCB suitable for?

A: It is ideal for residential, commercial, and industrial setups requiring reliable protection from leakage and earth faults, such as apartments, office complexes, factories, and high-rise buildings.

Q: When should I install a four-pole RCCB in my facility?

A: Install a four-pole RCCB when protecting three-phase circuits, especially where neutral safety is crucial, or if the environment demands enhanced residual current sensitivity and rapid isolation.

Q: Where can I purchase and receive delivery of this RCCB?

A: This RCCB is available through suppliers, traders, and wholesalers across India, and can also be exported internationally, with secure packing and flexible delivery via FOB or local dispatch.

Q: What is the process for installation and commissioning?

A: The unit is designed for vertical DIN rail mounting, with clear polarity indications and terminals accommodating 1-25 mm2 cables. Installation should be carried out by a qualified electrician for optimal performance.

Q: What are the benefits of using a high sensitivity 100mA RCCB?

A: A 100mA sensitivity ensures effective protection against moderate leakage currents, enhancing electrical safety for both users and equipment in various demanding environments.
